COGNEX MACHINE VISION LENSES

Selection depends on your sensor size (e.g., 2/3", 3/4", 1" lens, etc.) and the required working distance. Cognex provides a Lens Advisor tool to help you match optical specifications with your field of view (FOV) requirements to ensure no vignetting or resolution loss.

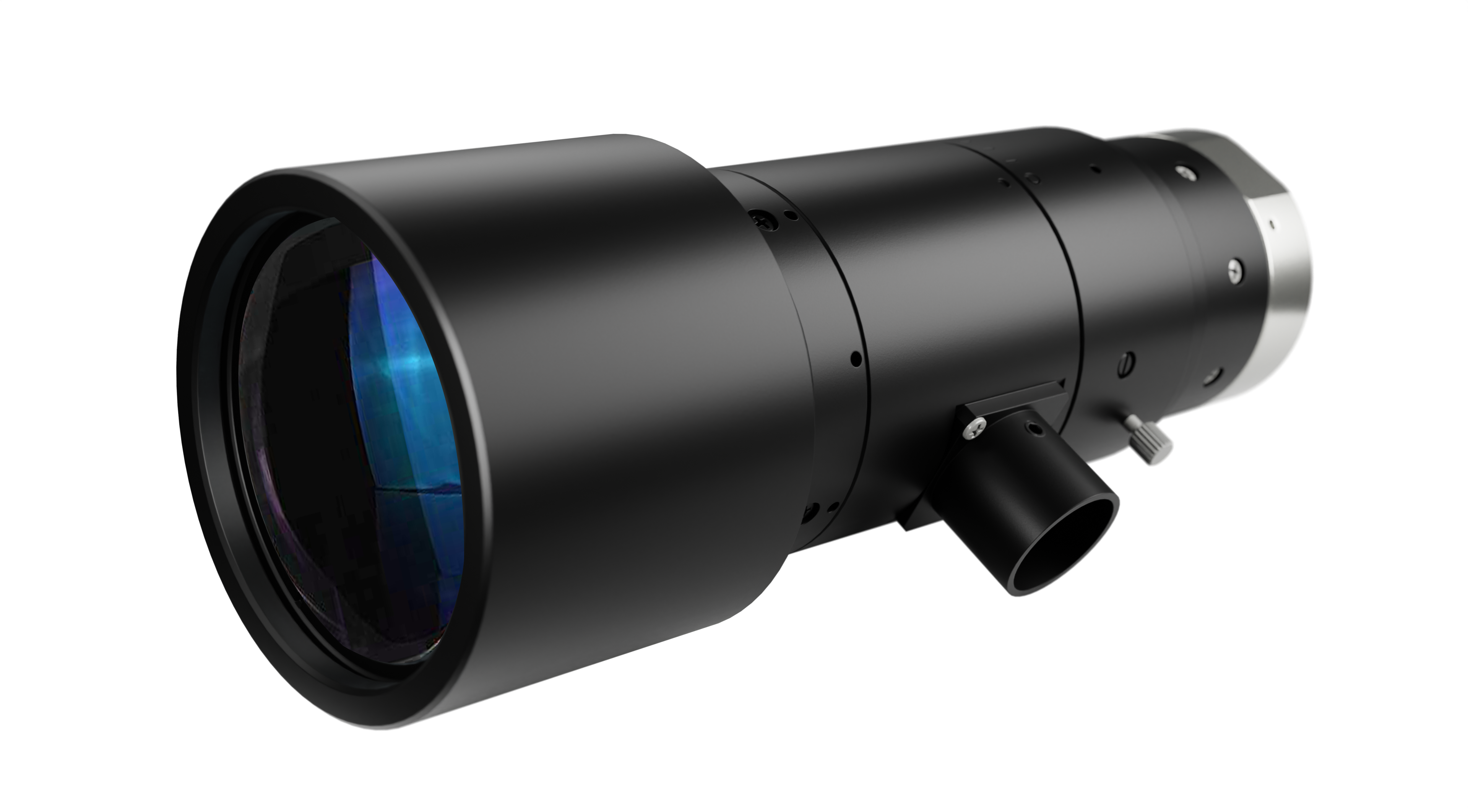

Telecentric lenses are essential for precision metrology. Unlike standard lenses, they eliminate perspective error (parallax), meaning the magnification of an object remains constant even if it moves closer to or further from the lens. This is critical for measuring 3D parts or objects on a moving conveyor.

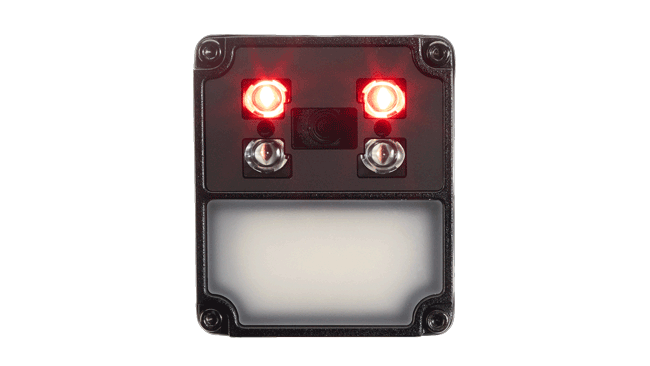

Yes. For applications where parts vary in height or distance, Cognex uses autofocus and liquid lens technology. These allow the system to rapidly adjust focus electronically without any moving mechanical parts, increasing reliability and cycle speeds in mixed-model production.

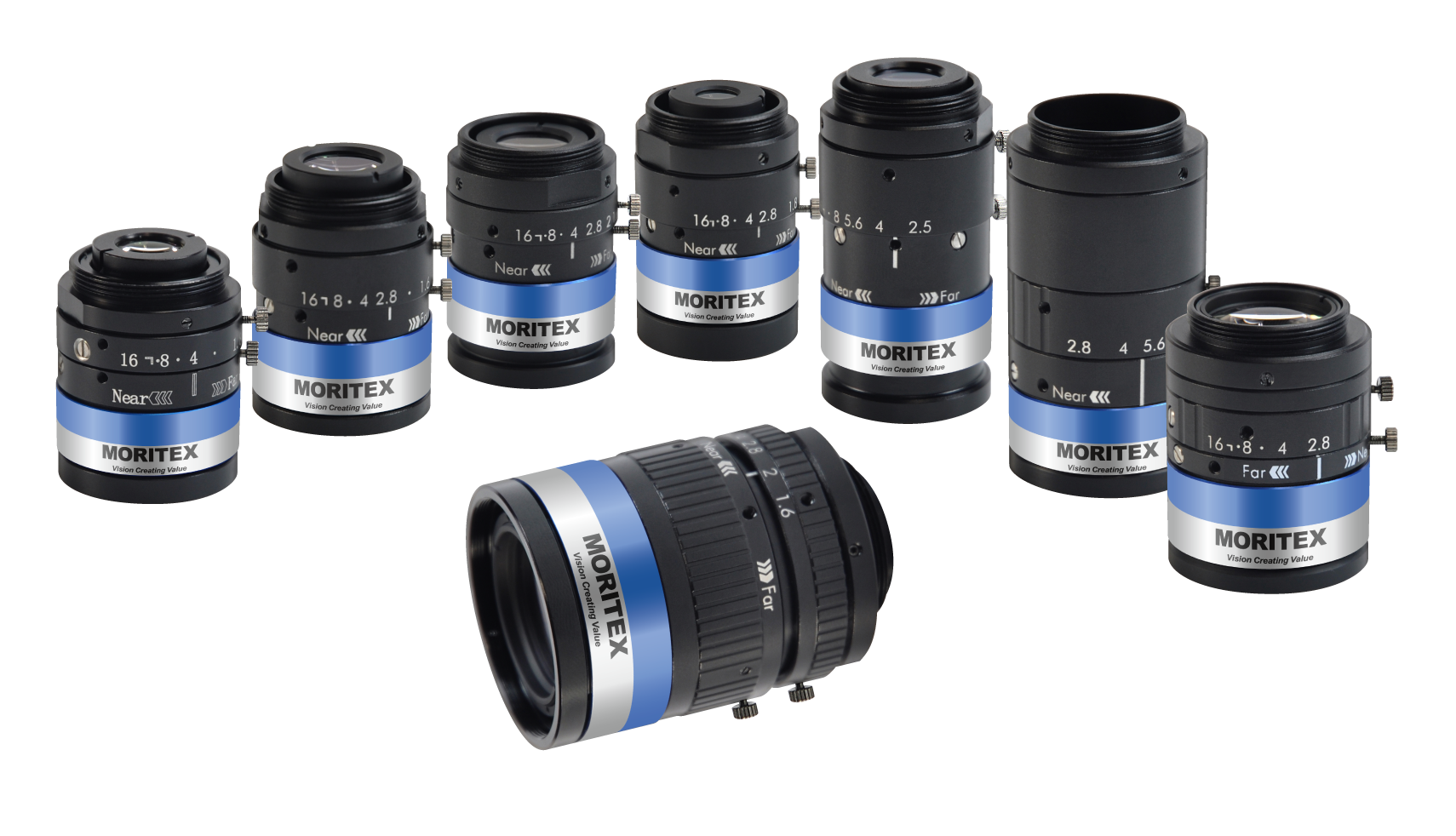

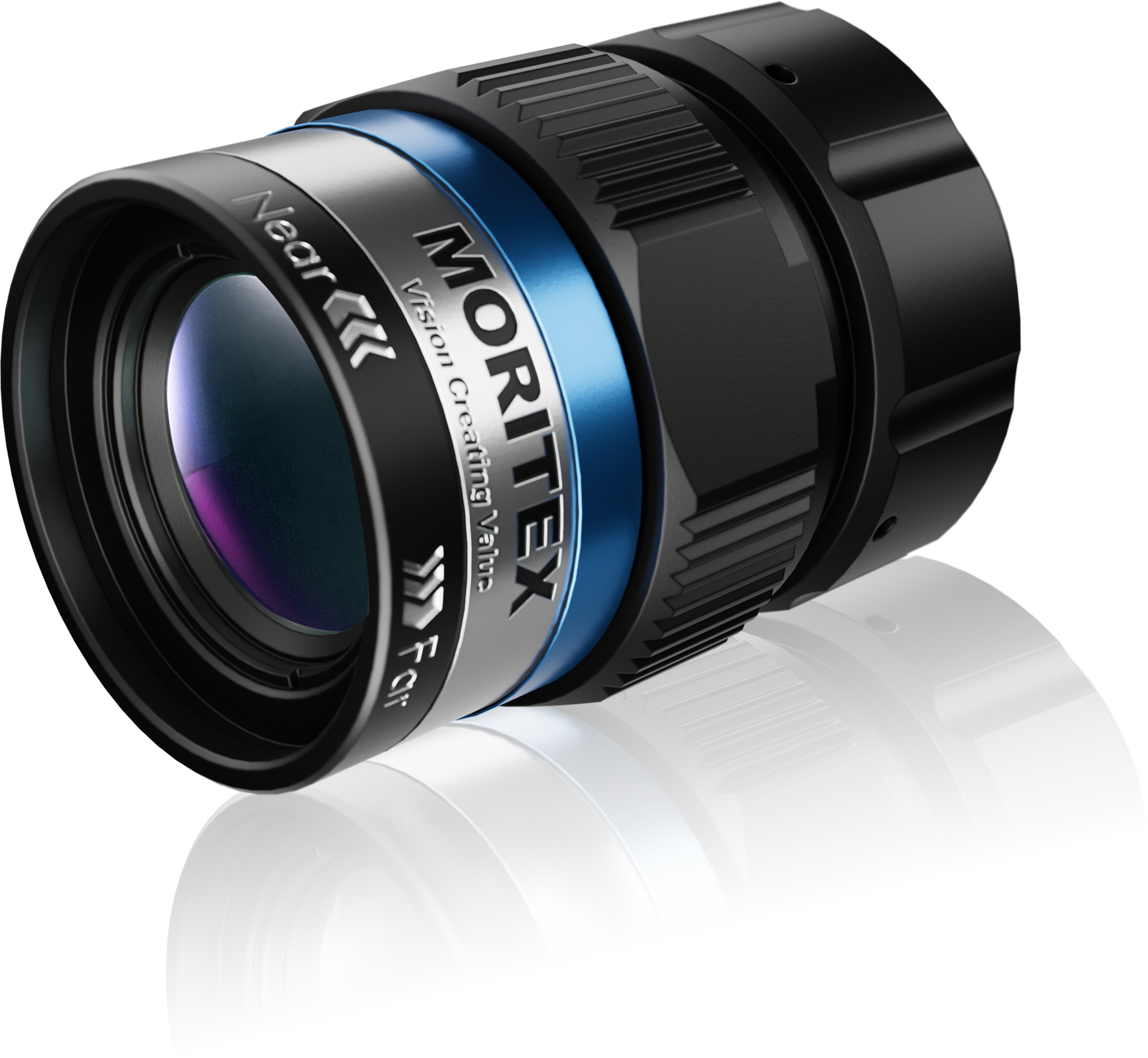

Cognex lenses are designed specifically for the factory floor. They feature ruggedized mechanical designs, including locking screws for the iris and focus. This prevents "setting creep" caused by heavy machine vibrations, ensuring the system stays in focus during continuous operation.

Cognex offers a variety of high-resolution wide-angle lenses designed to capture a broad field of view at short working distances. These are optimized to maintain edge-to-edge sharpness and minimize the radial distortion common in standard wide-angle optics.

Liquid lens technology is a revolutionary advancement in machine vision that mimics the human eye's ability to focus instantly. Unlike traditional lenses that rely on mechanical motors to move glass elements, liquid lenses use electrical signals to change shape. If your production line handles different-sized boxes or parts at varying heights, the liquid lens can refocus for every single frame. It allows a camera to maintain a sharp image even when the target isn't in a fixed position, reducing the need for multiple cameras at different focal points. Because the "motor" is integrated into the fluid cell, these lenses are significantly smaller than mechanical autofocus alternatives.

Resolution is not just about the camera's megapixel count; it is determined by the lens's ability to transfer contrast at a specific detail level, known as the Modulation Transfer Function (MTF). High-quality machine vision lenses are engineered with superior glass and coatings that:

• Maintain Edge-to-Edge Sharpness: Unlike standard optics that blur at the periphery, these lenses provide consistent clarity across the entire sensor.
• Increase Contrast: By minimizing internal reflections and light scattering, they ensure that small features—such as micron-scale defects on a PCB—remain distinct and visible to the inspection software.
• Match Sensor Pixel Pitch: They are specifically designed to resolve details at the microscopic level required by high-resolution industrial sensors.

Accurate imaging requires a "true" geometric representation of the object. Standard lenses often suffer from radial distortion (barrel or pincushion effects) that warps the image, but professional machine vision optics prioritize geometric fidelity:

• Ultra-Low Radial Distortion: Specialized optical designs keep straight lines straight on the sensor, often reducing distortion to <0.1%. This is critical for metrology applications where precise measurements are required.
• Telecentricity: Many high-performance lenses use a telecentric design to eliminate perspective error (parallax). This ensures that an object’s magnification remains constant even if its distance from the lens changes, preventing measurement errors on 3D parts.
• Minimized Software Correction: By delivering a nearly perfect image optically, these lenses reduce the need for digital de-warping, which can save processing power and prevent the introduction of software artifacts.
